Specifications:

• Weight: 28.5 g
• Type: Hybrid

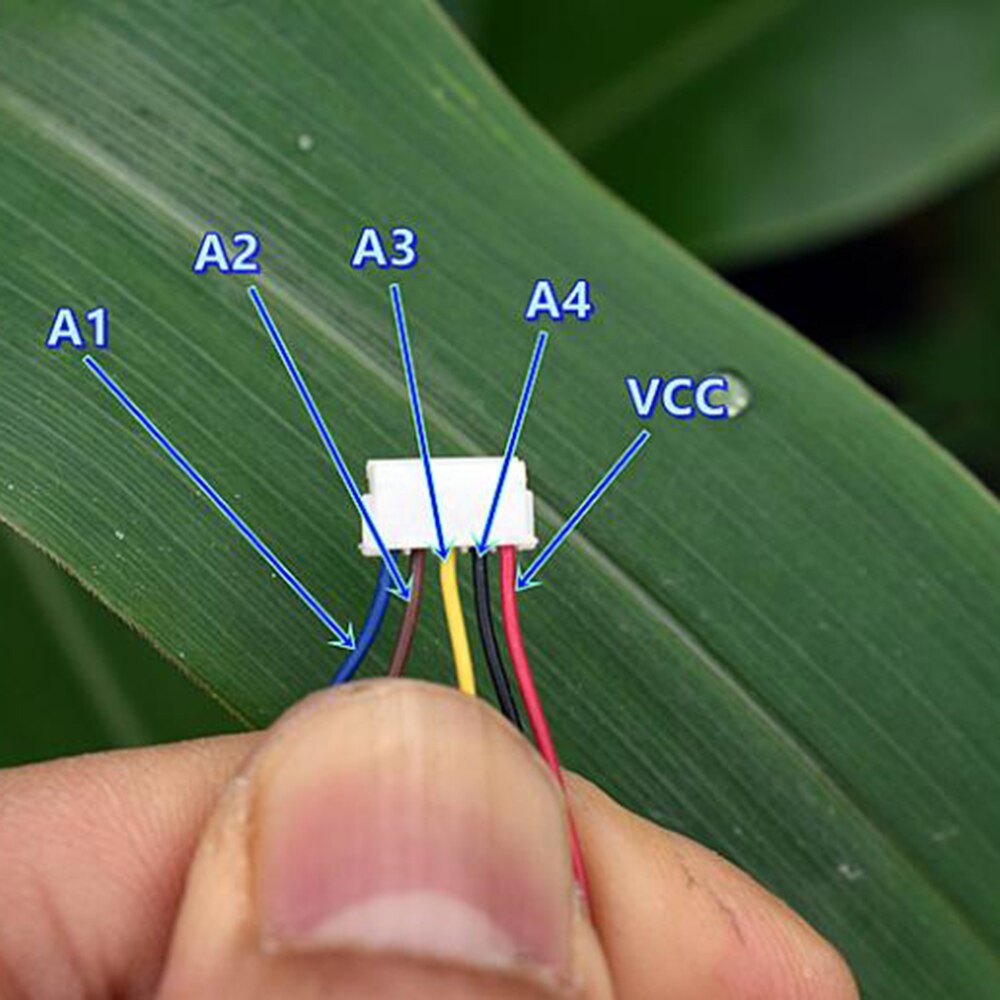

• Type: four-phase five-wire
• Rated voltage: 12 V
• Phase: 4

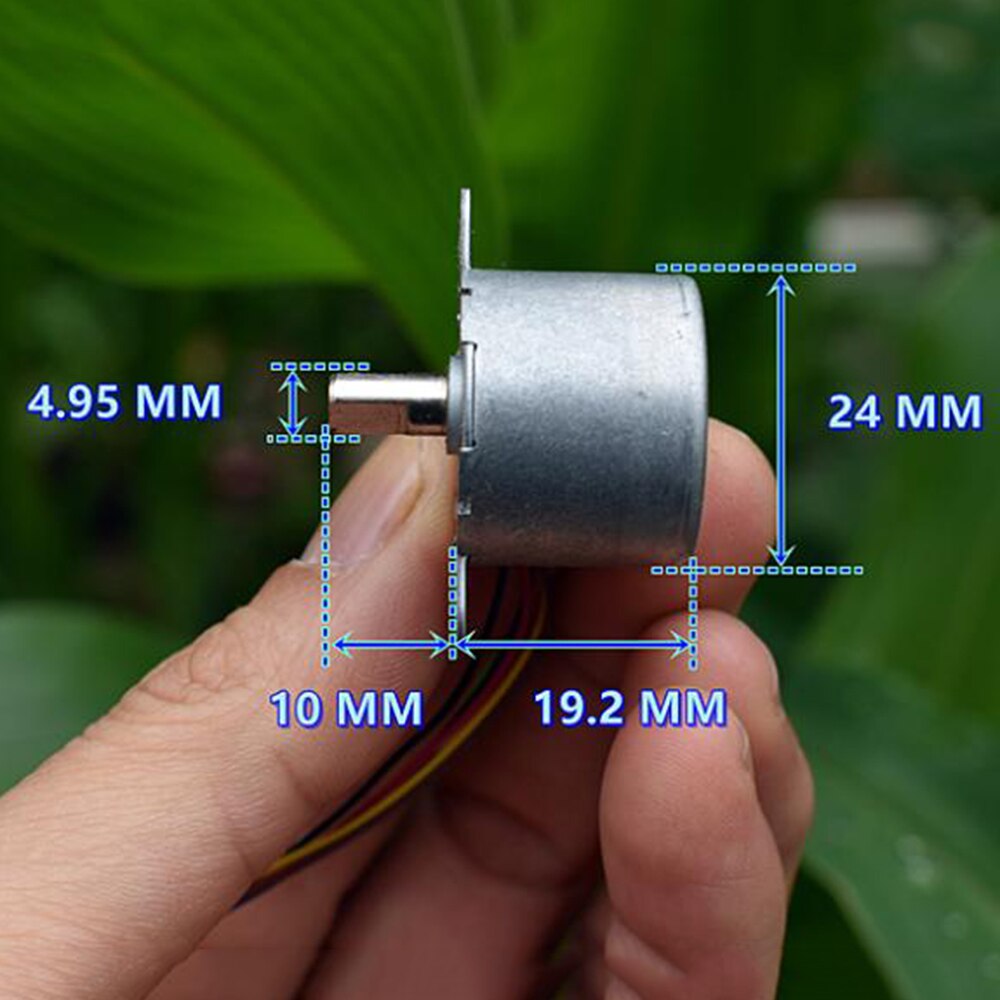

• Output shaft length: 10 MM
• Output shaft: 4.95 MM (with double flat position 2.9MM)
• Motor height: 19.2 MM
• Model Number: 24BYJ Stepper Motor
• Line length: 100 MM
• Internal resistance: 209 ohms at both ends and 106 ohms at the center tap
• Certification: ROHS
• Certification: ce
