DIY Lithium Battery Charge Box for 6x 18650 Batteries

Quick Answer:

• Houses up to 6x 18650 lithium batteries for custom power bank creation.
• XP7 waterproof rating ensures durability in various conditions.
• Provides 5V 2A USB output with a 2000mAh maximum capacity.
• Includes essential safety features like overcharge and overdischarge protection.

What is this DIY Battery Charge Box?

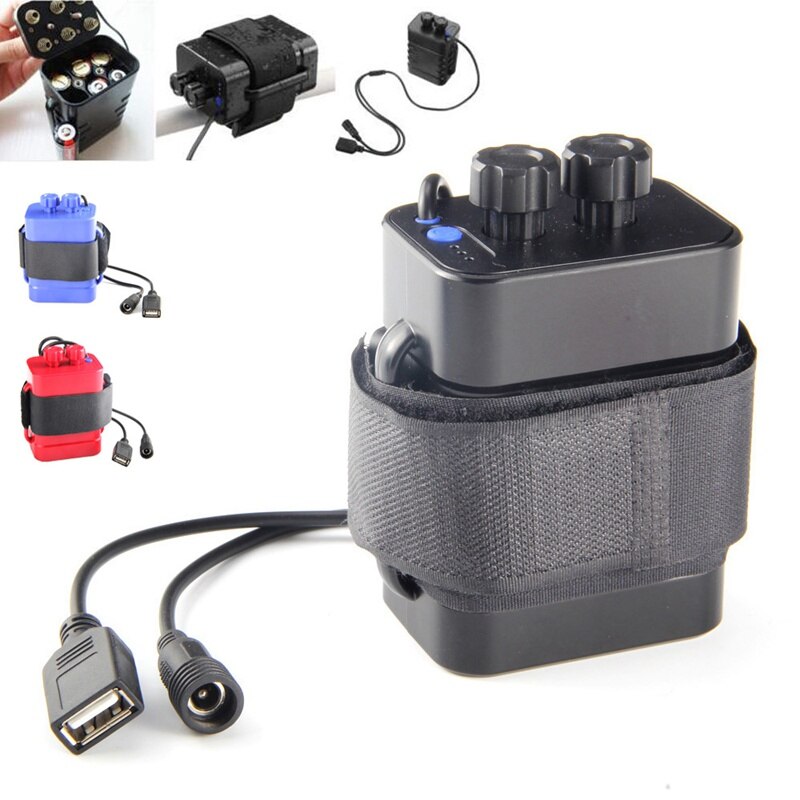

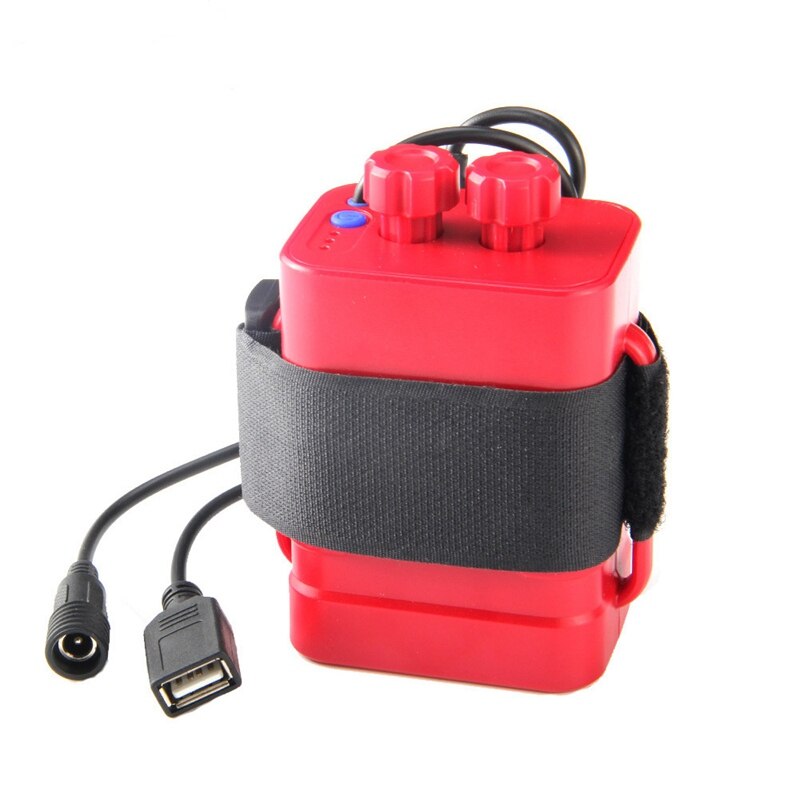

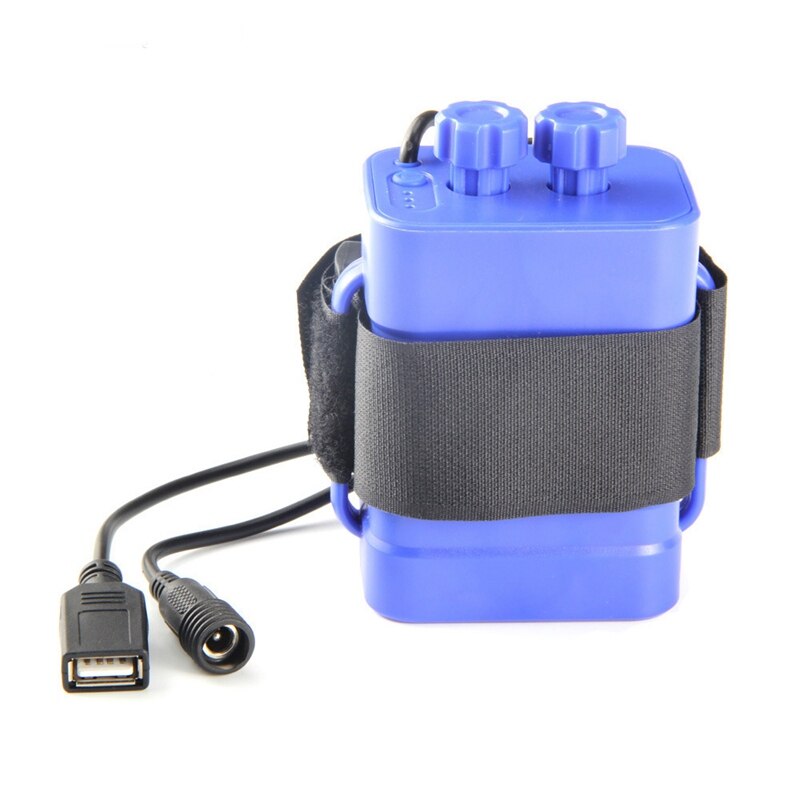

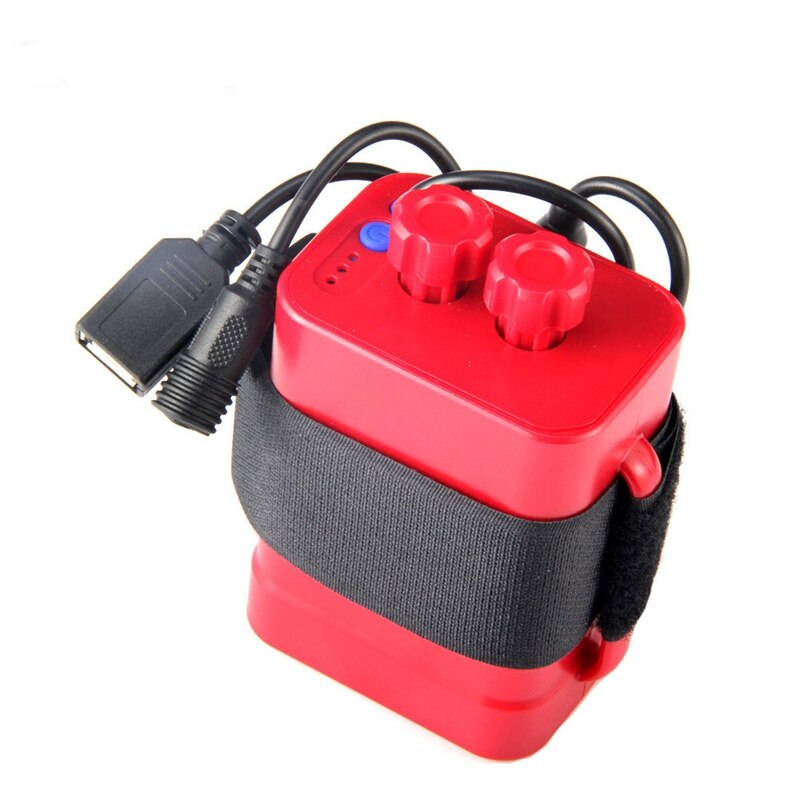

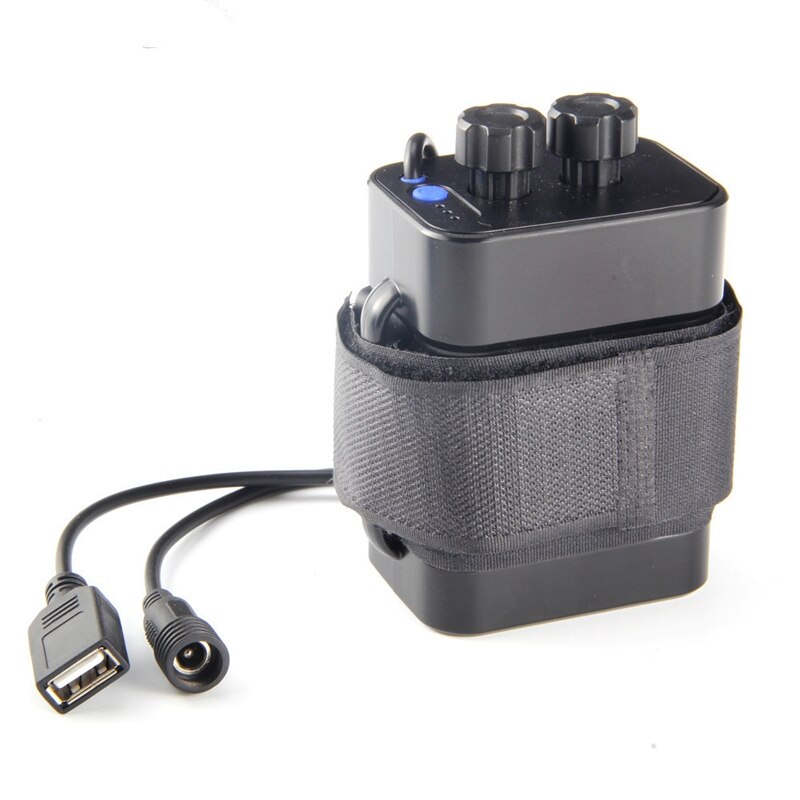

This is a DIY Lithium Battery Charge Box designed to hold up to six 18650 lithium batteries, allowing users to construct their own custom power banks.

The enclosure measures 11.5 x 8 x 5.7cm and features an XP7 waterproof rating, making it suitable for use in diverse environments.

It is an ideal shell for electronics enthusiasts and DIYers looking to build personalized portable power solutions.

Key Features and Safety Protections

The charge box offers a standard USB output voltage of 5V +/- 0.2V, with a maximum USB output capacity of 2000mAh, suitable for charging various devices.

It incorporates crucial safety features, including overcharge protection at 8.4V and overdischarge protection at 5V (current overdischarge protection at 9V), ensuring the safety of the batteries and connected devices.

An electric quantity display function is integrated to show the remaining battery power, adding convenience and usability to your custom power bank.

Specifications:

• Waterproof: XP7 Waterproof
• Size: 11.5X8X5.7cm
• Product standard 6: Maximum USB output: 2000mAh
• Product standard 5: USB output standard voltage: 5V+/-0.2
• Product standard 4: Standby current: less than 10ua
• Product standard 3: Current overdischarge protection voltage: 9V
• Product standard 2: Overdischarge protection voltage: 5V
• Product standard 1: Overcharge protection voltage: 8.4V
• Product: DIY Lithium Battery Charge Box
• Origin: CN(Origin)
• Note: No battery
• Model Number: Lithium Battery Charge Box
• Item Type: DIY Box & Shell
• Features: Electric quantity display function

Frequently Asked Questions:

What batteries does this DIY charge box support?

This DIY charge box is designed to hold up to six 18650 lithium batteries. Please note that batteries are not included with the product.

Is this battery charge box waterproof?

Yes, the charge box features an XP7 waterproof rating, making it suitable for use in wet conditions or outdoor environments.

What is the USB output specification?

The box provides a standard USB output voltage of 5V +/- 0.2V, with a maximum output capacity of 2000mAh, ideal for charging various devices.

Does the charge box have safety features?

Yes, it includes essential safety protections such as overcharge protection at 8.4V and overdischarge protection at 5V.

Can I see the battery level?

Yes, the charge box has an integrated electric quantity display function that shows the remaining battery power.
